Sensor
|
UFPA
|
|
Temperature range
|
30°C~45°C
|
|
Measurement resolution
|
0.1°C
|
|
Accuracy
|
±0.5°C (at 25°C ambient temperature)
|
|

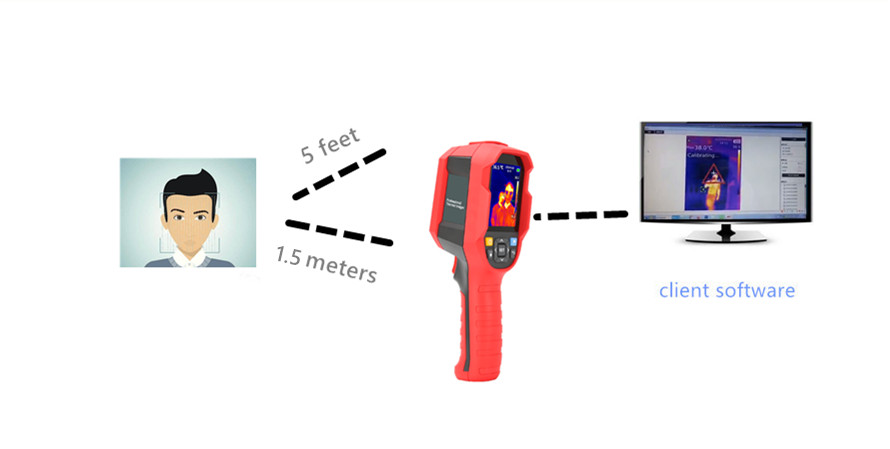

Optimal measuring distance
|
1 .5 meters
|
|
Response time
|
W500ms
|
|
IR resolution
|
19,200 pixels (160 x 120)
|
|
Pixel size
|
12 mp
|
|
Color palette
|
Iron, Rainbow, white Hot, Red Hot, Black Hot, Lava, Rainbow HC
|
|
Infrared spectral band
|
8|jm~14卩m
|
|
Field of view (FOV)
|
56° (H) * 42° (V)
|
|
Spatial resolution (IFOV)
|
6 m rad
|
|
Thermal sensitivity (NETD)
|
<50mK
|
|
Frame rate
|
<9Hz
|
|

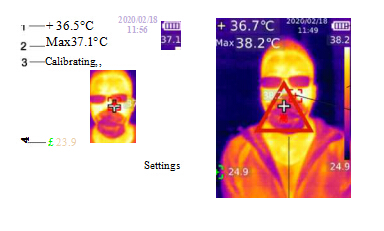

Temperature measurement display
|
Center point temperature, high temperature tracking (default)
|
|
Image format
|
BMP
|
|

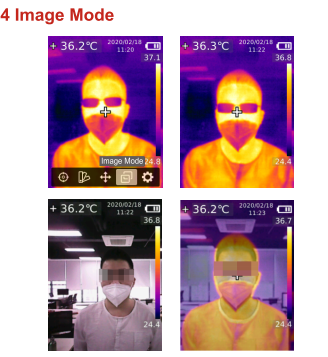

Image mode
|
Thermal, Digital (visual light image), Fusion
|
|
Point temperature measurement
|
In addition to the center point, 3 points can be added.
|
|
Certifications
|
-CE
(EN 61326-1:2013, EN 61326-2-2:2013, EN 61326-2-3)
-RoHS
|
